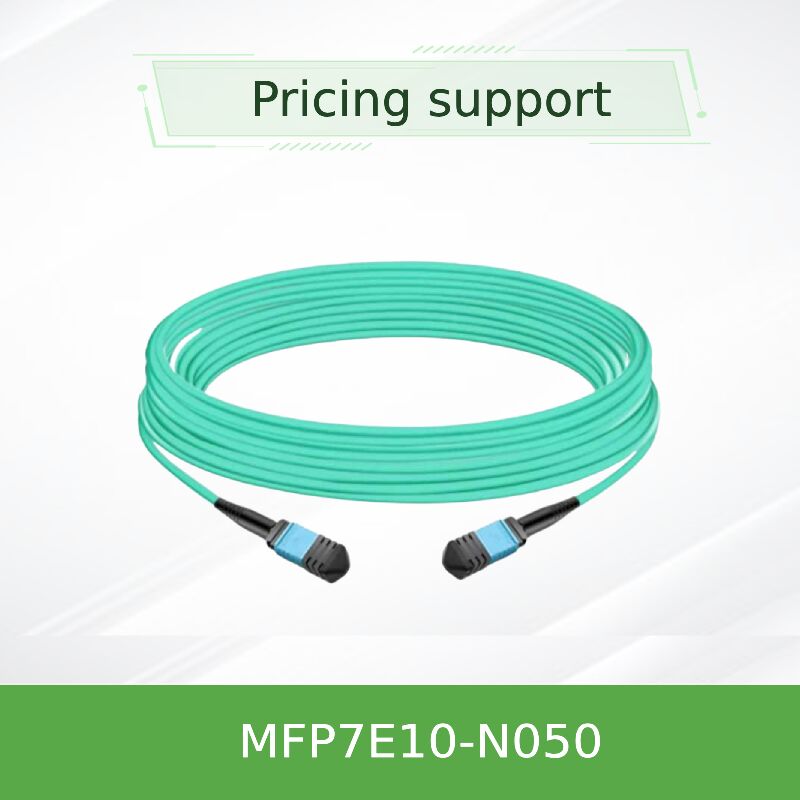

NVIDIA MFP7E10-N050 50m MPO12/APC OM4 Fiber Cable
Maximum Reach for 800G InfiniBand and Ethernet Applications
Product Overview
The NVIDIA MFP7E10-N050 is a passive MPO-12/APC-to-MPO-12/APC multimode fiber cable engineered for short-reach interconnects in high-performance data centers. This 50-meter variant represents the maximum supported distance for multimode fiber in 800G InfiniBand NDR and Ethernet applications.
Using eight active fibers in a Type-B crossover topology with OM4 fiber, this cable achieves full reach while maintaining signal integrity. With angled physical contact (APC) 8-degree polish, back reflections are minimized to ≥35dB return loss, critical for PAM4 modulation at 800Gb/s.
Key Specifications
- Part Number: MFP7E10-N050 (50m) - maximum multimode reach
- Fiber Type: Multimode 50/125µm OM4 (high bandwidth, long reach)
- Connector: MPO-12/APC female, green housing, 8° angled polish
- Insertion Loss: ≤0.37 dB (0.35 + 0.0004 × 50)
- Return Loss: ≥35 dB
- Minimum Bend Radius: 30 mm (dynamic / static)
- Maximum Reach: 50m (with two patch panels and 4 optical junctions)
- Jacket Color: Aqua (standard multimode identification)

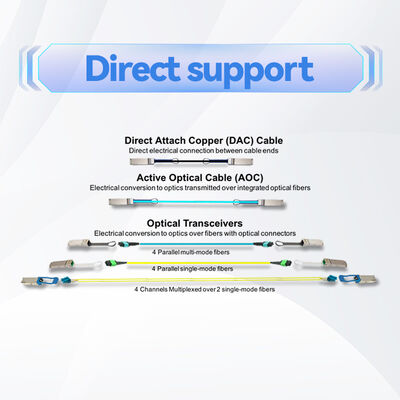

Technology & Signal Integrity
Designed for 800G DR8 / 400G DR4 architectures, each cable contains 8 multimode fibers arranged in a crossed pinout. The 8-degree APC interface reduces optical return loss to >35dB, critical for high baud rate transceivers. The passive design consumes zero power and introduces no latency, making it ideal for switch-to-switch or switch-to-DPU links in NDR InfiniBand fabrics.
OM4 fiber (effective modal bandwidth ≥4700 MHz*km) provides the necessary bandwidth to support 50G PAM4 per lane over 50 meters while maintaining low bit error rates.
Typical Deployments

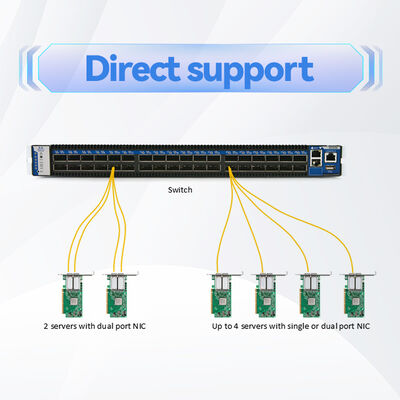

- Linking twin-port OSFP 800Gb/s switches to ConnectX-7 network adapters across 50-meter spans between rows
- Connecting NVIDIA BlueField-3 DPUs (QSFP112 or OSFP) to top-of-rack switches at maximum multimode distance
- Spine-leaf interconnects in storage servers requiring full 50m OM4 reach across data center rows
- Multimode backbone connecting switches across multiple racks or between rows in large data centers

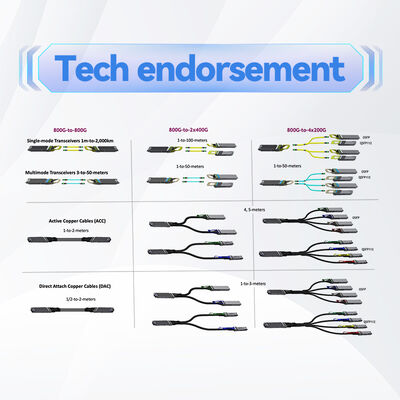

Compatibility
The MFP7E10-N050 works with any transceiver or system that accepts MPO-12/APC female connectors and expects Type-B pinout. Verified compatibility includes:

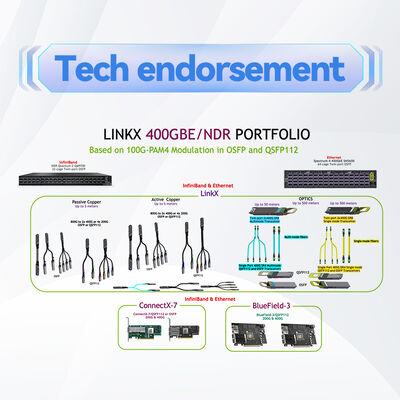

- NVIDIA MMA4Z00-NS (twin-port OSFP DR8, 800G) - up to 50m with OM4
- NVIDIA MMA4Z00-NS400 (single-port OSFP 400G) - up to 50m with OM4
- NVIDIA MMA1Z00-NS400 (QSFP112 400G) - up to 50m with OM4
- InfiniBand NDR 400G/800G switches and ConnectX-7 adapters

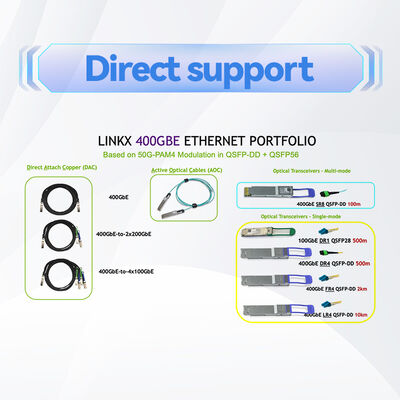

- Standard 400GbE switches with MPO-12 APC optical interfaces
Important Note: This cable cannot mate with MPO-12/UPC (ultra polish, blue shell) connectors. Mixed use will damage ferrule end faces and cause link failure. For distances beyond 50m, please use single-mode MFP7E20 series cables.
Technical Specifications
| Parameter | Value (MFP7E10-N050) |
|---|---|
| Product Type | Passive MPO-12/APC multimode fiber cable, Type B crossover |
| Length (nominal) | 50 meters ; tolerance: +2% × L / -0 (L≥5m) |
| Active fibers | 8 (4 Tx / 4 Rx direction) |
| Cable diameter | 3.0 ± 0.2 mm |
| Jacket material | Aqua LSZH / OFNR (low smoke zero halogen, riser rated) |
| Fiber core | 50/125 µm multimode OM4 (high bandwidth) |
| Insertion loss (max) | ≤0.37 dB (0.35 + 0.0004 × 50) |
| Return loss (min) | ≥35 dB |
| Operating temperature | 0°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Relative humidity | 10% ~ 85% (non-condensing) |
| Regulatory | RoHS, CE, FCC Class A, CB, cTUVus, RCM, VCCI |
| Laser class | Class 1 (IEC 60825-1/2, 21 CFR 1040) |
Selection Guide (MFP7E10-Nxxx Series)
| Ordering Part Number | Length | Fiber Type | Max Reach for 800G | Application |
|---|---|---|---|---|
| MFP7E10-N003 | 3 m | OM3 | 30m | Intra-rack |
| MFP7E10-N005 | 5 m | OM3 | 30m | Intra-rack |
| MFP7E10-N010 | 10 m | OM3 | 30m | Intra-rack / adjacent |
| MFP7E10-N015 | 15 m | OM3 | 30m | Within row |
| MFP7E10-N020 | 20 m | OM3 | 30m | Within row |
| MFP7E10-N030 | 30 m | OM3 | 30m | Max OM3 reach |
| MFP7E10-N035 | 35 m | OM4 | 50m | Extended reach |
| MFP7E10-N040 | 40 m | OM4 | 50m | Extended reach |
| MFP7E10-N050 | 50 m | OM4 | 50m (maximum) | Between rows / max distance |
Note: MFP7E10-N050 uses OM4 fiber, which is required to achieve full 50m reach for 800G applications. The 50-meter specification assumes two optical patch panels with a total of 4 mated connector pairs.
Frequently Asked Questions
Q1: Is MFP7E10-N050 guaranteed for 800G at full 50 meters?
A: Yes, when used with NVIDIA MMA4Z00-NS transceivers and two patch panels (4 mated pairs), the 50m link is within the specified optical budget. OM4 fiber is required for this distance.
Q2: Can I use OM3 fiber instead of OM4 for 50m?
A: No. OM3 fiber supports 800G only up to 30 meters. For 50m, OM4 is mandatory to maintain signal integrity and meet the loss budget.
Q3: What is the difference between MFP7E10-N050 and MFP7E20-N050?
A: MFP7E10-N050 is multimode OM4 for distances up to 50m. MFP7E20-N050 is single-mode for distances beyond 50m (up to 500m+).
Handling Precautions
- Do not remove dust caps until the moment of installation. Contamination is the #1 cause of link degradation, especially at 50m distances.
- Always clean both cable connector and transceiver optical receptacle using an MPO-APC specific cleaner before insertion.
- Do not bend the cable tighter than 30 mm radius, particularly near connectors where stress can increase insertion loss.
- Never mix MPO-APC (green/slanted) with MPO-UPC (blue/flat) -- physical damage will occur.
- Comply with standard ESD precautions when handling pluggable transceivers, although the cable itself is passive.
- For 50m deployments, ensure cable pathways do not exceed bend radius limits to maintain optical performance.
