NVIDIA MFP7E10-N010 10m MPO-12/APC Fiber Cable | for 400G/800G OSFP NDR Optical Links
Détails sur le produit:
| Nom de marque: | Mellanox |
| Numéro de modèle: | MFP7E10-N010 (980-9I57X-00N010) |
| Document: | MFP7E10-Nxxx.pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièces |
|---|---|
| Prix: | Negotiate |
| Détails d'emballage: | Boîte extérieure |
| Délai de livraison: | Basé sur l'inventaire |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | Fourniture par projet / lot |
|
Détail Infomation |
|||
| Modèle de produit: | Mfp7e10-n010 | Type de câble: | Multimode om4 |
|---|---|---|---|
| Longueur: | 10 mètres | Type de connecteur: | MPO-12 / APC (femme à la femme) |
| Débit de données maximal: | 400g | Perte d'insertion: | ≤ 0,35 + 0,0004 * L DB |
| Mettre en évidence: | NVIDIA 10m MPO-12 fiber cable,400G OSFP NDR optical cable,Mellanox MPO-12 APC fiber cable |
||
Description de produit

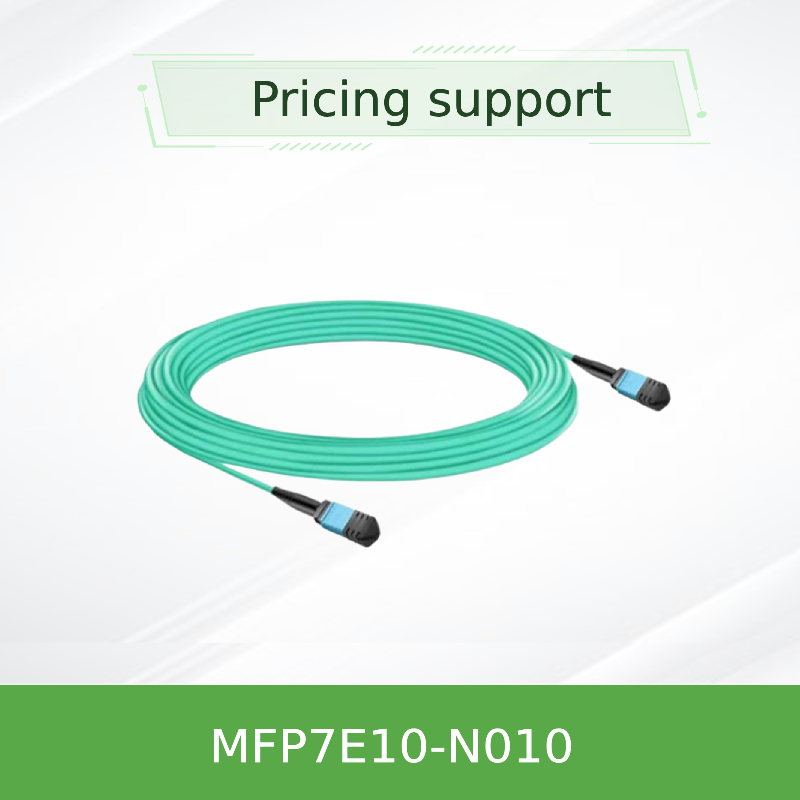

The NVIDIA MFP7E10-N010 is a high-performance passive optical fiber cable designed for modern data center interconnects. It utilizes a dual MPO-12/APC connector interface to link 400Gb/s and 800Gb/s optical transceivers. This 10-meter cable features eight active 50/125µm OM4 multimode fibers arranged in a crossover (Type B) topology, allowing direct connection between two devices—such as switches, network interface cards (NICs), or DPUs—without intermediary patch panels. Engineered for NVIDIA's NDR (Next Data Rate) ecosystem, it provides a reliable, low-loss optical path for demanding HPC, AI, and cloud storage workloads.
- High-Density 800G Connectivity: Enables 2x400Gb/s (800G aggregate) links between twin-port OSFP transceivers for InfiniBand NDR and Ethernet
- Optimized Signal Integrity: Features MPO-12/APC (Angled Physical Contact) connectors with 8° polish to minimize back-reflection and ensure superior optical performance
- Plug-and-Play Crossover Design: Pre-configured as a Type B (crossed) cable for direct transceiver-to-transceiver connections
- Robust & Flexible Construction: 3mm flexible round jacket with LSZH rating, aqua-colored OM4 multimode fiber, and 30mm minimum bend radius
- Broad Protocol & Platform Support: Compatible with NVIDIA Quantum-2 InfiniBand, Spectrum-4 Ethernet, ConnectX-7 adapters, and BlueField-3 DPUs
| Parameter | Specification |
|---|---|
| Product Model | MFP7E10-N010 (10-meter variant) |
| Connector Type | MPO-12/APC (Female) to MPO-12/APC (Female) |
| Fiber Type | OM4 Multimode, 50/125 µm, Aqua Jacket |
| Active Fibers | 8 fibers (4 Tx, 4 Rx - Type B Crossover) |
| Cable Diameter | 3.0 ± 0.2 mm |
| Insertion Loss (Max) | ≤ 0.354 dB (calculated for 10m) |
| Return Loss (Min) | ≥ 35 dB |
| Minimum Bend Radius | 30 mm |
| Jacket Material / Rating | LSZH-OFNR (Low Smoke Zero Halogen) |
| Operating Temperature | 0°C to 70°C |
| Part Number | Length |
|---|---|
| MFP7E10-N003 | 3m |
| MFP7E10-N005 | 5m |
| MFP7E10-N010 | 10m |
| MFP7E10-N020 | 20m |
| MFP7E10-N030 | 30m |
| MFP7E10-N050 | 50m |

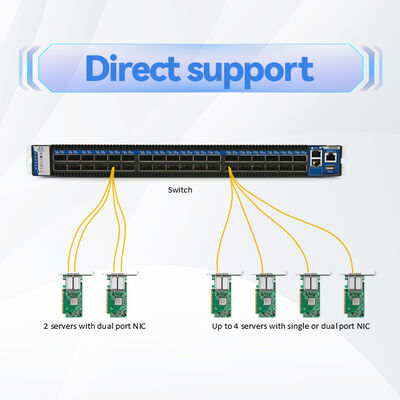

- Switch-to-Switch Interconnect for spine-leaf connections
- Switch-to-Adapter Links with ConnectX-7 network adapters
- High-Performance Computing (HPC) Clusters for AI training
- Data Center Expansion within and between racks
- Unified Fabric supporting converged InfiniBand and Ethernet traffic
- Quality Assurance: Every cable undergoes rigorous insertion loss and return loss testing
- Inventory Availability: Standard lengths typically available from stock
- Technical Expertise: Pre-sales design consultation and post-sales support
- Warranty: Full manufacturer's warranty covering defects
- Global Logistics: Reliable international shipping with full tracking
With over a decade of dedicated experience in the networking hardware sector, we have grown into a trusted partner for enterprise and data center infrastructure. Our operations are supported by a large-scale production facility and a deeply knowledgeable technical team, enabling us to deliver solutions that combine cost-effectiveness with unwavering reliability.
As an authorized distributor for industry-leading brands including NVIDIA Mellanox, Ruckus, Aruba, and Extreme Networks, we maintain a comprehensive inventory valued at over $10 million.
- Guaranteed NDR Compatibility with NVIDIA's 400G/800G optical transceivers
- Superior Optical Performance with APC connector technology
- Installation Efficiency with pre-terminated, factory-tested design
- Future-Ready Design supporting latest protocols and form factors
- Enhanced Safety & Durability with LSZH jacket and robust construction
