10M 10GbE U/UTP Ethernet Patch Cord for High-Density Network Installations
Détails sur le produit:
| Nom de marque: | Commscope |
| Numéro de modèle: | PC-C6AU-LSB1-WH-10M |
| Document: | PC-C6AU-LSB1-WH .pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièces |
|---|---|
| Prix: | Negotiate |
| Détails d'emballage: | boîte |
| Délai de livraison: | Basé sur l'inventaire |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | Fourniture par projet / lot |
|
Détail Infomation |
|||
| Classe ANSI/TIA: | 6A | Type de câble: | U/UTP (non couvert) |
|---|---|---|---|
| Type de conducteur: | Fil dur | Interface, connecteur A: | Prise RJ45 |
| Caractéristiques des interfaces: | Standard | connecteur A interface: | Prise RJ45 |
| Longueur: | 10m | ||
| Mettre en évidence: | 10M Ethernet Patch Cord,10GbE Network Patch Cord,U/UTP Cat6A Cable |
||
Description de produit

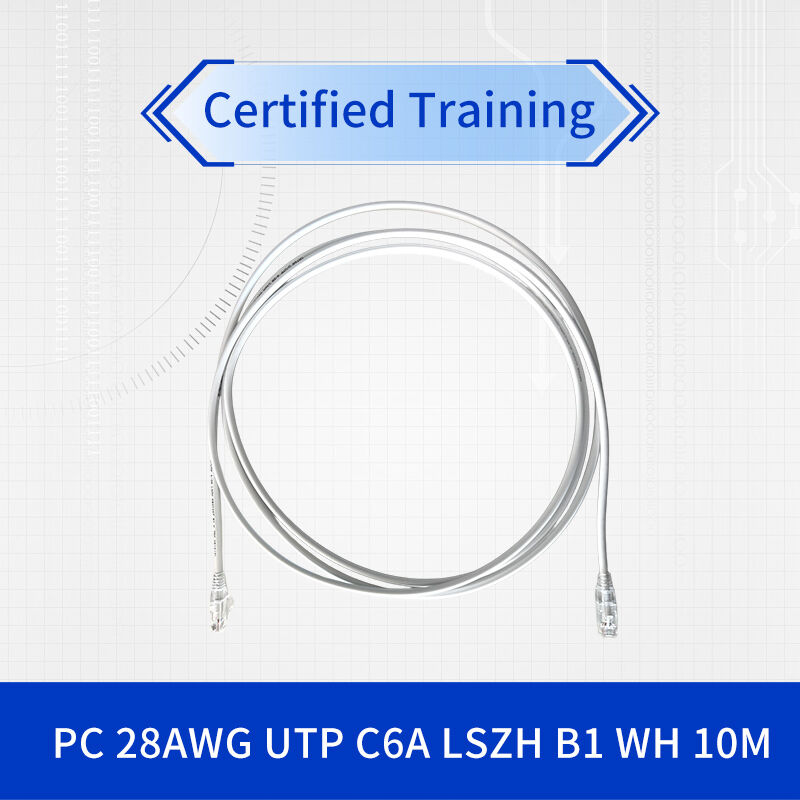

CommScope CAT6A 28AWG U/UTP LSZH Ethernet Patch Cord
Advanced High-Density Networking Solution for 10GbE Applications
Space Optimization
28AWG slim design enables 30% higher port density compared to standard Cat6A cables, perfect for crowded network cabinets and patch panels.
Safety First
LSZH jacket material reduces smoke and toxic emissions during fire incidents, meeting strict B1 flammability standards for public spaces.
Product Overview
This high-performance Category 6A patch cord represents the next generation in network connectivity solutions. Designed specifically for environments where space optimization and safety compliance are critical, this 28AWG networking cable delivers exceptional transmission characteristics while maintaining compact dimensions. The U/UTP construction ensures compatibility with existing infrastructure while providing superior alien crosstalk performance.
Technical Specifications
| Specification Category | Technical Details | Performance Metrics |
|---|---|---|
| Electrical Properties | Transmission Standard | ANSI/TIA-568.2-D Cat6A, ISO/IEC 11801 Class Ea |
| Physical Characteristics | Conductor Specification | 28AWG Stranded Copper Conductors |
| Overall Diameter | 5.2 mm Compact Design | |
| Connector System | Interface Standard | 8P8C RJ45 T568B Wiring |
| Mechanical Durability | 750 Minimum Insertion Cycles | |
| Environmental Compliance | Operating Conditions | -10°C to +60°C Temperature Range |
| Safety Certification | LSZH Jacket, GB/T 31247 B1 Rated |
Implementation Scenarios
Data Center Deployment
Ideal for high-density server racks, top-of-rack switching, and storage area networks where space optimization is critical.
Enterprise Infrastructure
Perfect for corporate networks, telecommunications rooms, and workstation connectivity in office environments.
Performance Advantages
Enhanced Cable Management
The 28AWG Cat6A network cable significantly reduces cable tray congestion and improves airflow in enclosed cabinets. This slim patch cord enables cleaner installations and easier troubleshooting in complex network environments.
Superior Transmission Quality
Despite its reduced size, this Ethernet cable maintains full Cat6A performance specifications, supporting 10 Gigabit Ethernet speeds with excellent signal-to-noise ratio and minimal insertion loss.
Long-Term Reliability
With 750+ insertion cycle rating and robust connector design, this networking cord withstands frequent reconfigurations common in dynamic IT environments, reducing maintenance costs and downtime.
Technical Support & Services
CommScope provides comprehensive technical assistance for this high-performance network patch cord, including installation guidance, performance validation services, and compatibility verification with existing infrastructure. Our global support network ensures professional assistance for deployment challenges.
Frequently Asked Questions
What makes this 28AWG Cat6A cable suitable for high-density installations?
The reduced 5.2mm diameter of this networking cable allows for significantly more connections in limited space while maintaining full Cat6A performance, making it ideal for crowded network cabinets and data centers.
How does the LSZH jacket enhance safety compared to standard PVC?
The Low Smoke Zero Halogen jacket material minimizes toxic fume emission and reduces smoke density during fire incidents, providing crucial additional evacuation time and protecting sensitive electronic equipment.
Can this patch cord support Power over Ethernet applications?
Yes, this high-quality Cat6A network cable is engineered to support IEEE 802.3bt Type 4 PoE++ applications, delivering up to 90W of power while maintaining signal integrity for data transmission.
